NDT Instrument

• Display Type
• LCD

• Features
• Polished

• Frequency
• 50Hz

• Power Supply
• Rechargeable Battery

• Usage
• Industrial

• Frequency
• 55KHZ

• Usage
• Automotive

• Equipment Type
• Digital Concrete Test Hammer

• Accuracy
• 1 MPa

• Application
• Non-destructive testing of concrete strength and hardness

• Automation Grade
• Semi-Automatic

• Capacity
• 225 Joule Impact Energy

• Control Mode
• Manual

• Display Type
• Digital LCD Display

• Features
• Data storage, digital display, automatic calculation

• Hardness
• Tested on concrete surface

• Humidity
• 90% RH (non-condensing)

• Interface Type
• USB for data transfer

• Machine Weight
• 1 kg

• Measuring Range
• 10-70 MPa

• Mounting Type
• Handheld

• Number of Specimens
• As required

• Operating Voltage
• DC 3.7V rechargeable battery

• Power Supply
• Battery Operated

• Resolution
• 0.1 MPa

• Response Time
• Instantaneous

• Specimen Size
• Minimum test area: 100mm diameter

• Temperature
• 0C to 40C

• Test Range
• 10-70 MPa (Compressive Strength)

• Test Speed
• Standard 2.5 m/s

• Test Stroke
• 75 mm

• Usage
• For testing concrete hardness

• Equipment Type
• Digital Concrete Rebound Hammer

• Automation Grade
• Manual operation

• Display Type
• Digital LCD Display

• Measuring Range
• 70 MPa

• Mounting Type
• Handheld

• Power Supply
• Rechargeable battery

• Response Time
• Instant reading

• Usage
• Concrete hardness test

• Machine Weight
• 650gram

• Equipment Type

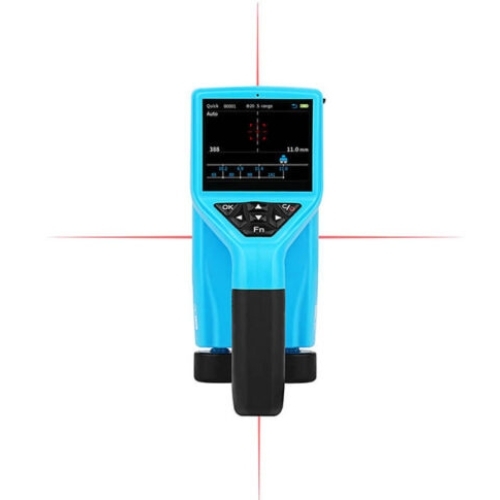

• Rebar Locator

• Accuracy
• Depth accuracy: 1 mm (within 10 mm), 2 mm (within 10-100 mm)

• Application
• Detecting rebar position, diameter, and cover thickness in reinforced concrete

• Automation Grade
• Semi-automatic

• Control Mode
• Touch panel operation

• Display Type
• Large LCD touchscreen display

• Features
• Multi-mode scanning, memory storage, error prompts, user-friendly operation

• Humidity
• 90% RH (non-condensing)

• Interface Type
• USB (for data transfer)

• Machine Weight
• Approx. 1.5 kg (main unit + sensor)

• Measuring Range
• Depth: up to 100 mm for rebar 6~50 mm

• Mounting Type
• Handheld

• Operating Voltage
• DC 7.4V (lithium battery)

• Port Size
• Sensor cable port

• Power Supply
• Rechargeable lithium battery / DC adapter

• Resolution
• 0.1 mm (depth measurement)

• Response Time
• Instantaneous (real-time display)

• Specimen Size
• Concrete slab, variable sizes

• Temperature
• -10C to +50C (operating)

• Test Range
• Rebar diameter, depth, and localization

• Test Speed
• Manual scan and automatic measurement

• Usage
• Construction site, civil engineering testing, building inspection

• Equipment Type

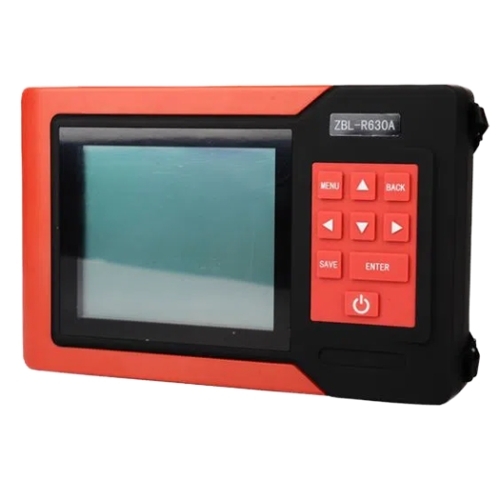

• Rebar Locator

• Application
• Rebar detection

• Automation Grade
• Manual operation

• Capacity
• Single device operation

• Display Type
• Color Display

• Features
• Portable handheld unit

• Interface Type
• Wired probe

• Max Height
• Compact design

• Measuring Range
• Detection Depth: 100-200 mm

• Mounting Type
• Handheld device

• Number of Specimens
• Single scan

• Operating Voltage
• Low voltage

• Power Supply
• Rechargeable battery

• Resolution
• Accurate measurement

• Response Time
• Fast detection

• Specimen Size
• Rebar Diameter Range: 8-50 mm

• Test Range
• Depth Range: 200 mm

• Test Speed
• Instant result

• Usage
• Structural analysis

• Equipment Type

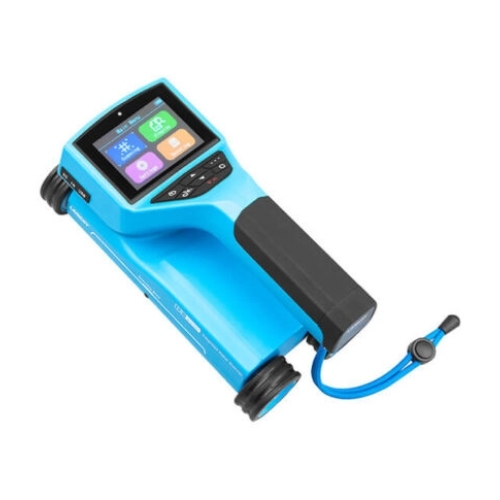

• Integrated Rebar Locator

• Accuracy
• 1 mm (position); 1 mm (depth)

• Application
• Rebar detection in concrete structures

• Automation Grade
• Semi-automatic

• Capacity
• ---

• Control Mode
• Manual

• Display Type
• Color LCD touch screen

• Features
• High-contrast LCD, Graphical interface, Data storage, Transfer to PC

• Frequency
• ---

• Gas Pressure
• ---

• Hardness
• ---

• Humidity
• 90% RH

• Interface Type
• USB

• Machine Weight
• 1.1 kg

• Max Height
• ---

• Measuring Range
• Rebar diameter: 6~50 mm; Detection depth: up to 130 mm

• Mounting Type
• Handheld

• Number of Specimens
• ---

• Operating Voltage
• DC 7.4V (Battery)

• Port Size
• ---

• Power Supply
• Rechargeable Lithium-ion Battery

• Resolution
• 1 mm

• Response Time
• Instantaneous

• Specimen Size
• ---

• Temperature
• -10C ~ +40C

• Test Range
• Rebar position, depth, and diameter measurement

• Test Speed
• ---

• Test Stroke
• ---

• Test Width
• ---

• Usage
• Non-destructive testing / Site inspection

• Equipment Type
• Rebar Locator

• Accuracy
• 1 mm (cover thickness)

• Application
• Detection of steel bar position and thickness in concrete structures

• Automation Grade
• Manual

• Capacity
• Data Storage: 2000 groups

• Control Mode
• Button Control

• Display Type
• Color LCD Display

• Features
• Portable, High Precision, Large Memory, Graphic Display

• Humidity
• 90% RH

• Interface Type
• USB

• Machine Weight
• 1.2 kg

• Measuring Range
• Diameter: 6-50mm; Cover thickness: up to 80mm

• Mounting Type
• Handheld

• Number of Specimens
• Single Point / Continuous Mode

• Operating Voltage
• 3.7V Rechargeable

• Power Supply
• Lithium Battery / DC Adapter

• Resolution
• 0.1 mm

• Response Time
• Instantaneous / Real-time

• Temperature
• -10C to +40C

• Test Range
• Rebar diameter: 6-50mm; Measuring depth: up to 80mm

• Test Speed
• Manual Operation

• Usage
• Rebar detection in civil engineering

• Equipment Type
• Concrete Rebar Detector

• Accuracy
• 1 mm (for 6 ~ 80 mm depth)

• Application
• Locating rebars, measuring diameter, and concrete cover depth

• Automation Grade
• Manual

• Capacity
• --

• Control Mode
• Handheld Operation

• Display Type
• Digital LCD

• Features
• Lightweight, portable, memory function, data storage

• Frequency
• --

• Humidity
• 90% RH (non-condensing)

• Interface Type
• USB for data transfer

• Machine Weight
• 1.2 kg

• Measuring Range
• Depth 6-100 mm; Rebar Diameter 6-50 mm

• Mounting Type
• Handheld

• Number of Specimens
• Single Probe

• Operating Voltage
• DC 7.4V (Lithium Battery)

• Power Supply
• Rechargeable Lithium Battery

• Resolution
• 1 mm

• Response Time
• Instantaneous

• Temperature
• -10C to 50C

• Test Range
• 6 mm to 100 mm (rebar detection)

• Test Speed
• Manual Scanning

• Test Stroke
• Up to 40 mm

• Usage
• Site and laboratory concrete structure inspection

• Application
• Construction site

• Display Type
• Large LCD screen

• Machine Weight
• 500 g

• Measuring Range
• Depth Range: 200 mm

• Power Supply
• 1.5 V

• Usage
• Rebar detection

• Equipment Type
• Concrete Resistivity Meter

• Accuracy
• 1% of reading

• Application
• Non-destructive measurement of concrete resistivity on site or in the lab

• Automation Grade
• Manual Operation

• Control Mode
• Manual

• Display Type
• LCD digital display

• Features
• Portable, non-destructive, automatic temperature and humidity compensation

• Humidity
• 85% RH

• Interface Type
• USB and probe connectors

• Machine Weight
• Approx. 2 kg (including battery)

• Measuring Range
• 0 to 2000 cm

• Mounting Type
• Handheld

• Number of Specimens
• Single measurement at a time

• Operating Voltage
• DC 7.4V

• Port Size
• Standard interface connectors

• Power Supply
• Rechargeable Lithium Battery

• Resolution
• 1 cm

• Response Time
• Immediate (under 2 seconds)

• Specimen Size
• Applicable for surfaces 100 x 100 mm

• Temperature
• -10C to +50C (operating)

• Test Range
• 0 to 2000 cm

• Test Speed
• Instant measurement (within 2 seconds)

• Usage
• Concrete durability testing and quality assessment

• Equipment Type
• Pull Out Tester

• Application
• Industrial

• Automation Grade
• Automatic

• Display Type
• Digital

• Usage
• Industrial

• Equipment Type
• Anchor Bolt Pull Out Tester

• Application
• Anchor bolt strength

• Capacity
• 500 kN

• Control Mode
• Manual

• Mounting Type
• Direct anchor fit

• Usage
• Laboratory

• Equipment Type
• Anchor Bolt Pull-Out Tester

• Accuracy
• 1% of Reading

• Application
• Testing Pull-out strength of anchor bolts and fasteners in concrete

• Automation Grade
• Manual

• Capacity
• 50t - 100t

• Control Mode
• Manual Mechanical Pump

• Display Type
• Analog Gauge

• Features
• Portable, Easy to Operate, Rugged Design

• Hardness
• Standard Industrial Grade Materials

• Humidity
• 85% RH

• Interface Type
• Mechanical-Hydraulic Interface

• Machine Weight
• Approx. 10-15 kg

• Max Height
• Approx. 300 mm (Including Jack)

• Measuring Range
• 0-100 Ton

• Mounting Type
• Portable/Hand-held

• Number of Specimens
• Single Specimen per Test

• Port Size
• Standard Hydraulic Coupling

• Power Supply
• Not Required (Manual Operation)

• Resolution
• 0.1 Ton

• Response Time
• Instantaneous upon operation

• Specimen Size
• Suitable for various anchor bolt diameters

• Temperature
• 0C-50C Operating Range

• Test Range
• 50 to 100 Ton

• Test Speed
• Manual (Depends on operator)

• Test Stroke
• Up to 100 mm

• Test Width
• Variable, as per anchor bolt size

• Usage
• On-site concrete anchor testing

• Equipment Type
• Anchor Bolt Pull-Out Tester

• Accuracy
• 2% F.S.

• Application
• Testing pull-out strength of anchor bolts in construction, civil engineering, and safety inspections

• Automation Grade
• Manual

• Capacity
• Up to 100 kN (model dependent)

• Control Mode
• Manual hydraulic control

• Display Type
• Analog or digital gauge (model dependent)

• Features
• Portable, easy to operate, rugged construction, compact design

• Frequency
• Not applicable (manual operation)

• Hardness
• High strength steel construction

• Humidity
• Max 85% RH, non-condensing

• Interface Type
• Mechanical/hydraulic coupling

• Machine Weight
• Approx. 10-25 kg (varies by model)

• Max Height
• Approx. 250 mm (cylinder size dependent)

• Measuring Range
• 0 to 100 kN

• Mounting Type
• Handheld or surface mounted depending on test

• Number of Specimens
• Single specimen per test

• Operating Voltage
• Not required (manual hydraulic operation)

• Port Size
• Standard quick coupling

• Power Supply
• Hydraulic, manual operation

• Resolution
• 0.1 kN

• Response Time
• Instantaneous (manual control dependent)

• Specimen Size
• M1, M2, M3, M4, M5 bolts

• Temperature
• Operating range 0C to 50C

• Test Range
• M1 to M5 anchor bolt sizes

• Test Speed
• Manual, controlled by hydraulic hand pump

• Test Stroke
• Up to 50 mm

• Test Width
• Adjustable, depends on anchor fixture diameter

• Usage
• Field and laboratory testing of anchor bolts

• Control Mode
• Tablet interface

• Display Type
• Touchscreen tablet

• Frequency
• 50Hz

• Power Supply
• 220V

• Usage
• Industrial

• Equipment Type
• Data Acquisition System

• Accuracy
• 0.01%

• Application
• Industrial and laboratory measurement, high fidelity data recording

• Automation Grade
• Automatic

• Capacity
• 24 bit High Fidelity

• Control Mode
• PC/Tablet controlled

• Display Type
• Tablet/PC Screen (Digital)

• Features
• Real-time monitoring, high fidelity, multiple input channels

• Frequency
• DC to 20 kHz

• Humidity
• 0-90% RH (non-condensing)

• Interface Type
• USB 2.0/Bluetooth

• Machine Weight
• 1.5 kg

• Measuring Range
• 10V, 0-20mA (with adapter)

• Mounting Type
• Portable/Desk Mount

• Number of Specimens
• Up to 12 simultaneously

• Operating Voltage
• 5V DC

• Port Size
• USB 2.0/Bluetooth

• Power Supply
• 5V DC via USB

• Resolution
• 24 bit

• Response Time
• <1 ms

• Specimen Size
• Variable/Depends on application

• Temperature
• 0C to 50C

• Test Range
• 10V input range

• Test Speed
• Adjustable up to 1000 samples/sec

• Test Width
• Customizable, up to 12 channels

• Usage
• Electronic measurement and research

• Equipment Type
• Digital Wavelet Signal Analyzer

• Accuracy
• High precision, up to 0.1%

• Application
• Wavelet Analysis, Signal Processing, Research, Academic Labs

• Automation Grade
• Semi-automatic/Automatic

• Capacity
• Supports large data sets (up to 128GB via SD card)

• Control Mode
• Touchscreen, Software-based

• Display Type
• LCD Touchscreen Display

• Features
• Automated analysis, customizable reporting, data export, user-friendly interface

• Frequency
• Digital signal, up to MHz range (software configurable)

• Humidity
• Operating Range: 10% to 90% RH, non-condensing

• Interface Type
• USB, Wireless (Bluetooth/Wi-Fi enabled)

• Machine Weight
• Lightweight, Portable (approx. 1.5-2 kg)

• Measuring Range
• Adjustable via software, multi-scale range

• Mounting Type
• Desktop/Portable

• Number of Specimens
• Single or Multiple (Batch Mode Available)

• Operating Voltage
• 5V DC (USB Powered)

• Port Size
• Standard USB/Serial Ports

• Power Supply
• Rechargeable Battery or USB powered

• Resolution
• High-resolution digital output

• Response Time
• <1 second

• Specimen Size
• Compatible with standard wavelet sample formats

• Temperature
• Operating Range: 0C to 45C

• Test Range
• Depends on software, typically 0-100 units (relative)

• Test Speed
• Adjustable, Up to 10 tests/sec

• Test Width
• Standard (tablet-sized device)

• Usage
• Wavelet decomposition, denoising, feature extraction

• Equipment Type
• Wireless Transmission Tester

• Accuracy
• 1 dBm

• Application
• Wireless signal strength and quality verification

• Automation Grade
• Semi-automatic

• Capacity
• Data storage up to 1000 test results

• Control Mode
• Touchscreen (Tablet based)

• Display Type
• Touchscreen LCD (Tablet)

• Features
• Portable, real-time data display, wireless communication

• Frequency
• 2.4 GHz (typical)

• Humidity
• Operating 10% - 85% RH, Non-condensing

• Interface Type
• Wireless (Bluetooth/WiFi), USB

• Machine Weight
• Approx. 500g (including tablet and sensor)

• Measuring Range
• -90 dBm to -10 dBm

• Mounting Type
• Handheld/Desktop

• Number of Specimens
• Single per test

• Operating Voltage
• 3.7V (battery powered)

• Port Size
• Micro USB/Standard USB

• Power Supply
• Rechargeable Battery (Tablet & Sensor), 5V DC charging

• Resolution
• 0.1 dBm

• Response Time
• 1 second

• Specimen Size
• Flexible, dependent on sensor application

• Temperature
• Operating 10C - 40C

• Test Range
• Up to 100 meters wireless transmission distance

• Test Speed
• Adjustable, up to 20 tests/min

• Test Width
• Not Applicable (Single Point Measurement)

• Usage
• For laboratory and field wireless transmission testing

• Automation Grade
• Manual

• Frequency
• 50 Hz

• Application
• Civil construction piles

• Automation Grade
• Semi-automated

• Display Type
• Digital touchscreen

• Frequency
• 54 kHz

• Interface Type
• USB

• Measuring Range
• 1000-5000 m/s

• Mounting Type
• Tripod-supported

• Power Supply
• Rechargeable Battery

• Response Time
• Instant readout

• Temperature
• 0 to 50 C

• Usage
• Pile integrity testing

• Equipment Type
• Concrete Crack Width Detector

• Accuracy
• 0.01 mm

• Application
• Measurement of concrete crack widths and monitoring structural health

• Automation Grade
• Semi-automatic

• Control Mode
• Manual/Automatic

• Display Type
• Digital LCD

• Features
• Portable, lightweight, high-precision, easy operation

• Humidity
• 0-85% RH (non-condensing)

• Interface Type
• USB for charging and data transfer

• Machine Weight
• Approximately 0.8 kg

• Measuring Range
• 0.01 mm to 6 mm

• Mounting Type
• Handheld

• Operating Voltage
• 3.7 V (Rechargeable battery)

• Power Supply
• Rechargeable Battery / USB

• Resolution
• 0.01 mm

• Response Time
• Instantaneous / <1 s

• Temperature
• 0C to 40C (Operating)

• Test Range
• Crack width: 0.01 mm to 6 mm

• Usage
• On-site crack width detection and measurement

• Equipment Type
• Light Weight Deflectometer

• Accuracy
• 0.02 mm (deflection), 2% modulus

• Application
• Soil compaction, subgrade modulus testing, field CBR alternative, pavement & roadbed evaluation

• Automation Grade
• Semi-automatic or fully automatic

• Capacity
• Suitable for different base and subgrade strengths

• Control Mode
• Manual/Automatic digital control

• Display Type
• Digital LCD

• Features
• Portable, rugged case, real-time display, automatic calculation, memory storage

• Frequency
• Testing frequency as required per project

• Hardness
• N/A - refers to measured soil modulus

• Humidity
• Operating range up to 95% RH

• Interface Type
• USB/RS232, SD card export

• Machine Weight
• Approximately 15-25 kg (portable design)

• Max Height
• Case < 300 mm; drop height typically 750 mm

• Measuring Range
• Up to 120 MN/m2 modulus

• Mounting Type
• Handheld or ground placed during test

• Number of Specimens
• Single spot testing per drop

• Operating Voltage
• DC 5V/9V battery powered

• Port Size
• Standard test plate connection

• Power Supply
• Battery operated (rechargeable), optional AC adaptor

• Resolution
• 0.01 mm (deflection)

• Response Time
• Instant readout, less than 1 second

• Specimen Size
• Test plate diameter (generally 300 mm)

• Temperature
• -10C to +50C operating range

• Test Range
• Typically 0.05 - 1.5 mm deflection

• Test Speed
• Quick test cycle, typical < 2 minutes per measurement

• Test Stroke
• Integrated with drop weight system

• Test Width
• Standard plate diameter: 300 mm

• Usage
• Field soil & road compaction assessment

• Equipment Type
• Ultrasonic Flaw Detector

• Accuracy
• 0.1 mm

• Application
• Non Destructive Testing, Flaw Detection in Metals

• Automation Grade
• Semi Automatic

• Control Mode
• Manual / Automatic (menu driven)

• Display Type
• Color LCD Display

• Features
• Lightweight, Handheld, Portable, Voice Alarm, Storage Function, High-brightness LED, Real-time Display

• Frequency
• 0.5-15 MHz

• Humidity
• 85% RH

• Interface Type
• USB

• Machine Weight
• 1.1 kg

• Measuring Range
• 0-6000 mm (adjustable)

• Mounting Type
• Handheld

• Operating Voltage
• DC 7.4V (Rechargeable Battery), AC 220V Adapter

• Power Supply
• DC 7.4V (lithium battery) / AC 220V

• Resolution
• 0.01 mm

• Response Time
• Instantaneous / Real-time

• Temperature
• -10C to +40C

• Test Range
• 0-6000 mm (in steel)

• Usage
• Flaw Detection of Welds, Forgings, Castings, Metal Parts

• Equipment Type
• Calibration Block V1

• Accuracy
• High precision, as per industry standard

• Application
• Ultrasonic testing calibration, flaw detection equipment calibration

• Automation Grade
• Manual

• Control Mode
• Manual

• Features
• Corrosion Resistant, Durable, Standardized Dimensions

• Hardness
• Typically 180-220 HB

• Interface Type
• Manual/Physical

• Max Height
• As per standard V1 block specifications

• Measuring Range
• Standard V1 calibration specifications

• Mounting Type
• Handheld/Bench use

• Resolution
• Finely graduated markings as per EN/ISO standards

• Response Time
• Instantaneous (Passive instrument)

• Specimen Size
• Standard as per V1 Block Dimensions

• Usage
• Ultrasonic flaw detector calibration

• Equipment Type
• Ultrasonic Flaw Detector

• Accuracy
• 0.1 mm (depending on probe and conditions)

• Application
• Detection and localization of internal material flaws in welds, metal, composite, etc.

• Automation Grade
• Semi-Automatic

• Capacity
• Memory storage for up to 1000 measurement data sets

• Control Mode
• Manual and Automatic modes supported

• Display Type
• TFT LCD digital color display

• Features
• High sensitivity, data storage, real-time display, portable, digital signal processing, report printing

• Frequency
• 0.5 MHz - 20 MHz (probe dependent)

• Hardness
• Not applicable (not for hardness testing)

• Humidity
• < 85% RH

• Interface Type
• USB, BNC probe interface, serial communication

• Machine Weight
• Approx. 1.6 kg (including battery)

• Measuring Range
• 0-10,000 mm (steel equivalent)

• Mounting Type
• Handheld/Portable

• Number of Specimens
• Single at a time

• Operating Voltage
• DC 7.2 V (battery operation)

• Port Size
• Standard BNC connector for probe

• Power Supply
• Rechargeable lithium battery / AC adapter (220V, 50Hz)

• Resolution
• 0.01 mm

• Response Time
• Instantaneous (real-time)

• Specimen Size
• Suitable for a wide range of material sizes

• Temperature
• -10C to +50C operating range

• Test Range
• 0-10000 mm (in steel)

• Test Speed
• Variable (depends on probe and material), typical 1000 mm/s

• Usage
• Non-destructive testing, flaw detection, inspection, engineering assessment

• Equipment Type
• Ultrasonic Calibration Block

• Accuracy
• Manufactured as per IIW Standards, High precision

• Application
• Calibration and standardization of ultrasonic flaw detectors

• Automation Grade
• Manual

• Capacity
• Single Block

• Control Mode
• Manual

• Features
• Standardized reference block, clearly engraved scales and markings, chamfered edges

• Frequency
• Ultrasonic testing frequency compatible

• Hardness
• Material: Steel, typically 20-22 HRC

• Machine Weight
• Approx. 1.3 kg

• Max Height
• 43 mm (approx.)

• Measuring Range
• Varies as per calibration requirement

• Mounting Type
• Portable, Free standing

• Resolution
• Depends on instrument being calibrated

• Specimen Size
• 165 mm x 25 mm x 43 mm (Approximate overall dimensions)

• Temperature
• Room Temperature

• Test Range
• Calibration only

• Usage
• Ultrasonic NDT equipment calibration

• Accuracy
• +-6HLD

• Automation Grade
• Automatic

• Capacity
• Single probe use

• Display Type
• Digital

• Features
• Lightweight, handheld design

• Hardness
• HRC

• Interface Type
• USB port

• Max Height
• Compact unit

• Measuring Range
• Wide hardness scales

• Mounting Type
• Handheld

• Number of Specimens
• Multiple tests

• Operating Voltage
• Standard DC

• Power Supply
• Battery operated

• Response Time
• Instant readings

• Temperature
• Ambient operation

• Test Range
• Steel, alloys

• Test Speed
• Quick measurement

• Usage
• Metal hardness test

• Automation Grade
• Automatic

• Display Type
• Digital

• Hardness
• HRC

• Equipment Type
• Portable Leeb Hardness Tester

• Accuracy
• 0.5% (for D type probe)

• Application
• Testing hardness of ferrous and non-ferrous metals

• Automation Grade
• Manual

• Control Mode
• Manual

• Display Type
• Large LCD with backlight

• Features
• Portable, memory storage, data transfer, automatic shutdown

• Hardness
• Leeb, HRC, HRB, HB, HV, HS

• Humidity
• 90% RH

• Interface Type
• USB/RS232

• Machine Weight
• Approximately 0.35 kg

• Measuring Range
• HL 170~960

• Mounting Type
• Handheld / portable

• Operating Voltage
• DC 3V (2 x AA batteries)

• Power Supply
• 2 x AA batteries or DC adapter

• Resolution
• 1 HL

• Response Time
• Immediate (real-time display)

• Specimen Size
• Min. 5 mm thickness for reliable test

• Temperature
• -10C to +50C

• Test Range
• HL (170~960), HRC (17.9-69.5), HRB (13.5-101.7), HB (19-683), HV (19-940), HS (30.6-102.6)

• Test Speed
• Standard impact speed 2.2 m/s

• Usage
• Metal hardness testing

• Equipment Type
• Ultrasonic Thickness Gauge

• Accuracy
• 0.5 %

• Display Type
• 4-digit display

• Measuring Range
• 1mm to 225 mm

• Power Supply
• 3 x 1.5V AA batteries

• Resolution
• 0.01 mm

• Temperature
• Ambient

• Test Range
• 1mm to 225 mm

• Application
• Paint, plating, surface

• Display Type
• Color LCD screen

• Features
• Handheld design

• Measuring Range
• 1500 um

• Mounting Type
• Portable handheld

• Power Supply
• 2 X 1.5 AAA batteries

• Resolution
• 0.1 um

• Response Time
• Fast measurement

• Usage
• Coating thickness measurement

• Equipment Type
• Coating Film Thickness Gauge

• Accuracy
• (2%+1 m)

• Application
• Measurement of non-magnetic coatings on ferrous/metal substrates

• Automation Grade
• Manual

• Control Mode
• Manual

• Display Type
• Color LCD Display

• Features
• Fe & NFe measurement, zero calibration, digital readout, hold function, color display, lightweight design

• Humidity
• 0~95% RH (non-condensing)

• Measuring Range
• 0~1250 m

• Mounting Type
• Handheld

• Operating Voltage
• 3V (2 x 1.5V AAA batteries)

• Power Supply
• 2 x AAA alkaline batteries (1.5V each)

• Resolution
• 0.1/1 m (can be selected)

• Response Time
• Immediate (real-time)

• Specimen Size
• Any flat or slightly curved surface

• Temperature
• 0C to 50C

• Test Range
• 0~1250 m

• Usage
• Thickness measurement of paint, enamel, plastic, etc. on metal

• Equipment Type
• Coating Film Thickness Gauge

• Accuracy
• (2% of reading + 1m)

• Application
• Measurement of coating and paint thickness on metal substrates

• Automation Grade
• Manual

• Control Mode
• Manual Operation

• Display Type
• Colored Digital LCD Display

• Features
• Automatic substrate recognition, Data storage, Backlit display, Low battery indication

• Humidity
• 20%~90% RH (Non-condensing)

• Interface Type
• Micro USB (for PC connection, varies by model)

• Machine Weight
• Approx. 110g (including batteries)

• Measuring Range
• 0~2000m (0~2mm)

• Mounting Type
• Handheld

• Number of Specimens
• Single Specimen

• Operating Voltage
• 3V (2 x 1.5V AAA Batteries)

• Power Supply
• 2 x 1.5V AAA Batteries

• Resolution
• 0.1m (<100m), 1m (100m)

• Response Time
• <1 second

• Temperature
• 0C~50C

• Test Range
• Dependent on probe, up to 2000m (2mm)

• Usage
• Thickness Measurement

• Equipment Type
• Coating Thickness Gauge

• Accuracy
• 2.5%+1 m

• Application
• Measurement of dry film thickness of coatings on metallic substrates

• Automation Grade
• Manual

• Control Mode
• Manual

• Display Type
• Color LCD digital display

• Features
• Data storage, statistical analysis, auto power off, backlight display

• Humidity
• 90% RH

• Interface Type
• USB data output

• Machine Weight
• 120g (including batteries)

• Measuring Range
• 0~1250 m

• Mounting Type
• Handheld

• Operating Voltage
• 3V

• Power Supply
• 2 x 1.5V AA batteries

• Resolution
• 0.1 m (<100 m); 1 m (100 m)

• Response Time
• <1 second

• Temperature
• 0C to 40C

• Usage
• Industrial, Laboratory, Automotive, Painting, Quality Control

• Equipment Type
• Coating Film Thickness Gauge

• Accuracy
• (2%+1m)

• Application
• Measuring thickness of non-magnetic coatings on ferrous metal substrates and non-conductive coatings on non-ferrous metals

• Automation Grade
• Manual

• Control Mode
• Manual

• Display Type
• Colored LCD display

• Features
• Auto power off, zero calibration, compact design, low battery indication

• Humidity
• 85% RH

• Interface Type
• Standard buttons, no digital data output

• Machine Weight
• Approx. 100 g (including batteries)

• Measuring Range
• 0 - 1250 m

• Mounting Type
• Handheld

• Number of Specimens
• Single measurement

• Operating Voltage
• 3V DC (2 AAA batteries)

• Power Supply
• 2 x 1.5V AAA batteries

• Resolution
• 0.1 m (0 - 99.9 m), 1 m (100 - 1250 m)

• Response Time
• Immediate (<1 sec)

• Temperature
• 0C to 40C

• Test Range
• 0 - 1250 m

• Usage
• Paint, coating thickness measurement

• Equipment Type
• Adhesion Tester

• Accuracy
• 1% of full scale

• Application
• Coating adhesion strength measurement on substrates

• Automation Grade
• Manual

• Capacity
• Upto 25 MPa

• Control Mode
• Manual Operated

• Display Type
• Digital Display

• Features
• Portable, Digital Gauge, Easy-to-use

• Humidity
• 0-95% RH (Non-condensing)

• Machine Weight
• Approx. 1.5 kg

• Measuring Range
• 0-25 MPa

• Mounting Type
• Bench/Table or On-site Surface

• Number of Specimens
• 1 at a time

• Operating Voltage
• Not required (manual operation)

• Power Supply
• No external power required

• Resolution
• 0.01 MPa

• Response Time
• Instant

• Specimen Size
• Standard: 20 mm diameter (customizable)

• Temperature
• 0~50C

• Test Range
• 0~25 MPa (varies by model)

• Test Speed
• Manual (by crank handle)

• Test Stroke
• Up to 10 mm

• Test Width
• Standard: 20 mm (customizable)

• Usage
• Evaluate adhesion of coatings or films

• Equipment Type
• Automated Pull-off Tester

• Application
• Adhesion strength test

• Control Mode
• Automatic

• Display Type
• Button interface

• Equipment Type
• Pull-off Tester

• Accuracy
• 1% of full scale

• Application
• Adhesion strength measurement for coatings, mortars, and construction materials

• Automation Grade
• Manual

• Capacity
• 40 kN maximum

• Control Mode
• Manual Operation

• Display Type
• Digital LCD display

• Features
• Compact, portable, lightweight, digital display, manual operation

• Frequency
• N/A (non-powered)

• Gas Pressure
• N/A (manual mechanical drive)

• Hardness
• N/A (device does not have hardness)

• Humidity
• Up to 85% RH, non-condensing

• Interface Type
• Push-button (preset electronic settings options in digital version)

• Machine Weight
• 2.5 kg

• Max Height
• Approx. 210 mm

• Measuring Range
• 0-40 kN (other variants available)

• Mounting Type
• Handheld or stand-mounted

• Number of Specimens
• 1 per test (single specimen testing)

• Operating Voltage
• Not required for manual mode

• Port Size
• Standard mounting port; fits multiple test heads

• Power Supply
• Not required for manual model; Powered versions may use AA batteries or external supply

• Resolution
• 0.01 kN or 1 digit (display-dependent)

• Response Time
• Instantaneous/manual readout

• Specimen Size
• Standard dollies 20 mm or 50 mm (depending on configuration)

• Temperature
• 5C to 40C operational

• Test Range
• 0-40 kN (may vary with model variant)

• Test Speed
• Manual (controlled by hand crank)

• Test Stroke
• Up to 40 mm

• Test Width
• Approx. 150 mm overall width

• Usage
• Quality control, on-site and laboratory testing

• Equipment Type
• Pull-off Tester

• Accuracy
• 1% F.S.

• Application
• Adhesion strength measurement of coatings, concrete, and other construction materials

• Automation Grade
• Manual

• Capacity
• 6 MPa max

• Control Mode
• Manual rotary handle

• Display Type
• Dial or digital (varies by model)

• Features
• Portable, lightweight, easy to use, rugged construction

• Humidity
• 85% RH, Non-condensing

• Machine Weight
• 5.2 kg

• Max Height
• Approx 230 mm

• Measuring Range
• 0-6 MPa

• Mounting Type
• Handheld or placed on surface

• Number of Specimens
• 1 at a time

• Operating Voltage
• Not required / Manual

• Port Size
• M16

• Power Supply
• Not required / Manual

• Resolution
• 0.01 MPa

• Response Time
• Immediate, depends on operator

• Specimen Size
• 50 mm diameter standard dolly

• Temperature
• 5C - 40C

• Test Range
• 0-6 MPa

• Test Speed
• Manual (user operated)

• Test Stroke
• Up to 15 mm

• Test Width
• 75 mm

• Usage
• On-site and laboratory pull-off tests

• Equipment Type
• Digital Pull-off Adhesion Tester

• Accuracy
• 1% of full scale

• Application
• Testing adhesion strength of coatings, paints, concrete, and similar materials

• Automation Grade
• Manual

• Capacity
• 25 kN

• Control Mode
• Manual Operation

• Display Type
• Digital LCD Display

• Features
• Portable, lightweight, digital readout, memory storage

• Humidity
• Max 85% RH (non-condensing)

• Interface Type
• Digital gauge, may support data output (USB/RS232 optional)

• Machine Weight
• Approx. 2 kg

• Max Height
• Approx. 220 mm assembled

• Measuring Range
• 0-25 kN

• Mounting Type
• Tripod base with three-point contact

• Number of Specimens
• Single specimen per test

• Operating Voltage
• Battery (typically 9V or AA, depending on model)

• Power Supply
• Battery Operated (for digital gauge)

• Resolution
• 0.01 kN

• Response Time
• Instantaneous (real-time force display)

• Specimen Size
• Varies; standard 50 mm dolly

• Temperature
• 5C to 40C

• Test Range
• 0 to 25 kN

• Test Speed
• Manual, adjustable via hand crank

• Test Stroke
• Up to 26 mm

• Usage
• Adhesion (bond) strength testing

• Automation Grade
• Automatic, Manual

• Display Type
• Digital

• Usage
• Industrial

• Equipment Type
• Testing Anvil

• Application
• Impact Testing

• Capacity
• 2.207 Nm

• Measuring Range
• 70 MPa
